Bamboo silver plating 【NEW】

Our unique technology was named "bamboo silver" because it was harder and more flexible than conventional hard silver plating.
Features of bamboo silver plating
  • - Good bend adhesion properties
  • - Production by continuous plating (hoop plating) possible
  • - Securing of Hv120 - 180 surface hardness
  • - Suppression of hardness change with time
  • - Thick plating (- 40μm) possible
  • - Partial plating possible
Uses
  • - Large current charging connectors
  • - Switch and other contact parts
  • - Replacement for gold-plated connectors
Methods
  • - Hoop (reel-to-reel)
  • - Batch type (rack)

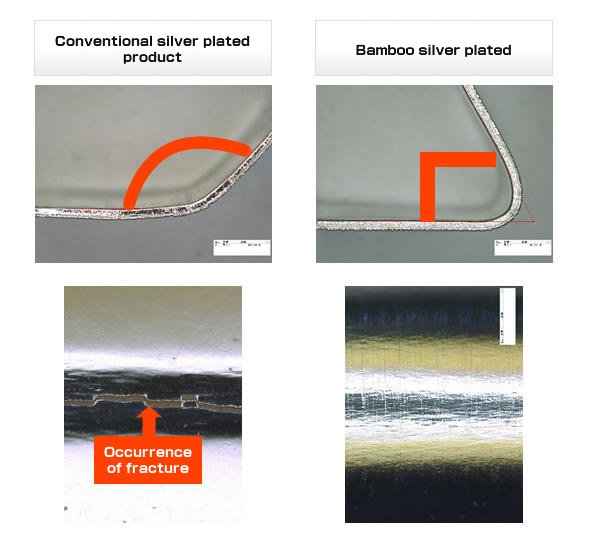

Bend test
